Cuplock Scaffolding vs H-Frame Staging: Site Safety, Load Capacity & Assembly Speed

## Modular Scaffolding: The Backbone of Heavy Civil Staging

Whether supporting a 1.5m thick bridge pier cap or providing facade access for a 20-story commercial tower, selecting the proper scaffolding system directly determines labor cost, structural safety, and project completion timelines.

In modern Indian construction, two primary modular systems dominate: **Cuplock Multi-Directional Scaffolding** and **H-Frame Staging Systems**.

---

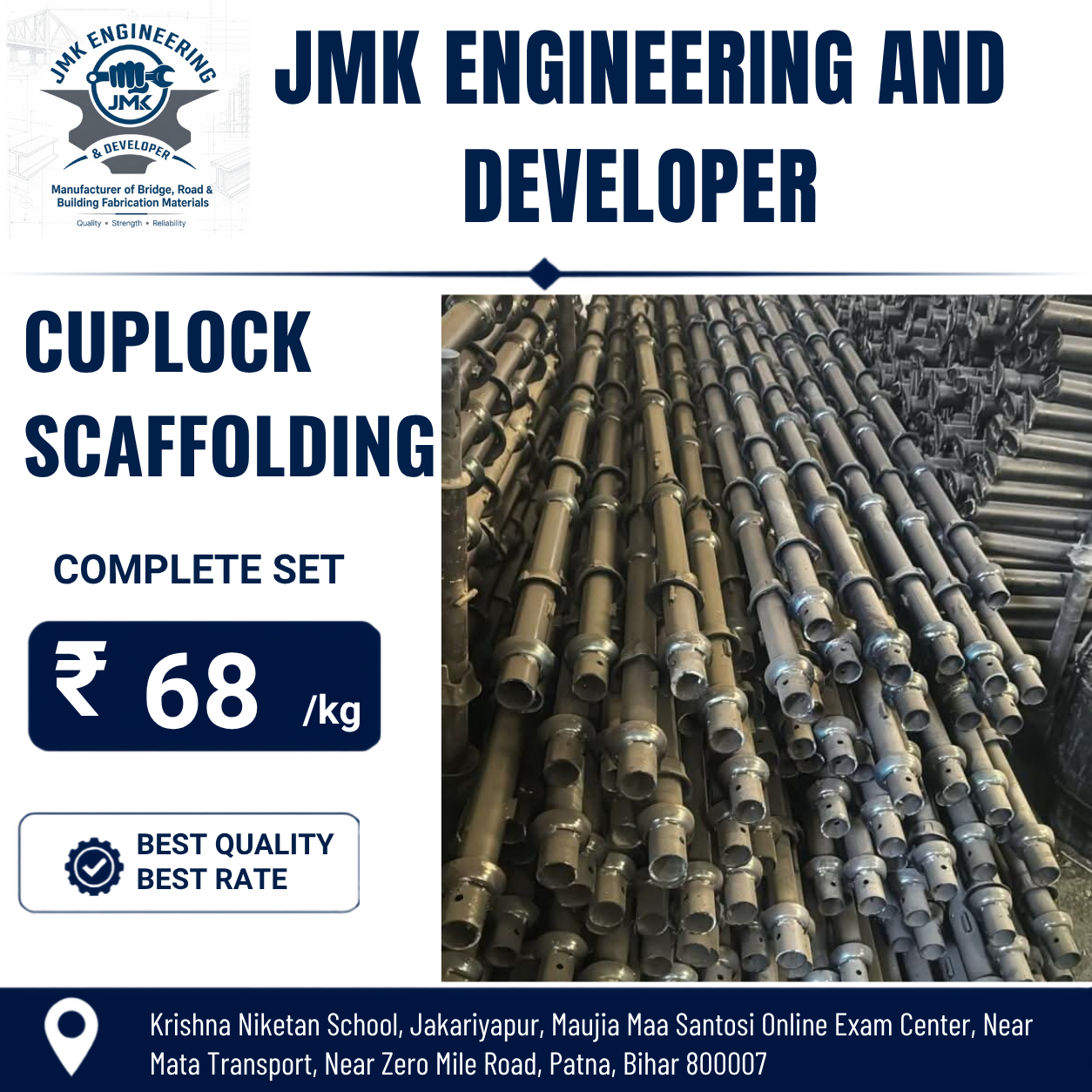

1. The Cuplock System: Features & Strengths

The Cuplock node point consists of a fixed bottom cup and a sliding, locking top cup welded onto vertical standards at regular $500\text{ mm}$ intervals. Up to **4 horizontal ledgers or diagonal braces** can be locked securely with a single hammer blow.

Key Benefits: - **No Loose Fittings:** Eliminates nuts, bolts, and loose couplers that get lost or stolen on job sites. - **Versatility:** Accommodates curved structures, circular storage tanks, and irregular bridge geometries. - **High Load Capacity:** Vertical standards manufactured from $48.3\text{ mm OD} \times 3.2\text{ mm}$ high-tensile steel tubes support up to **25 kN per leg** with proper cross-bracing.
