Fabricated directly at Patna Central Works. Supplied with Mill Test Certificates (MTC) certifying tensile yield and dimensional tolerances.

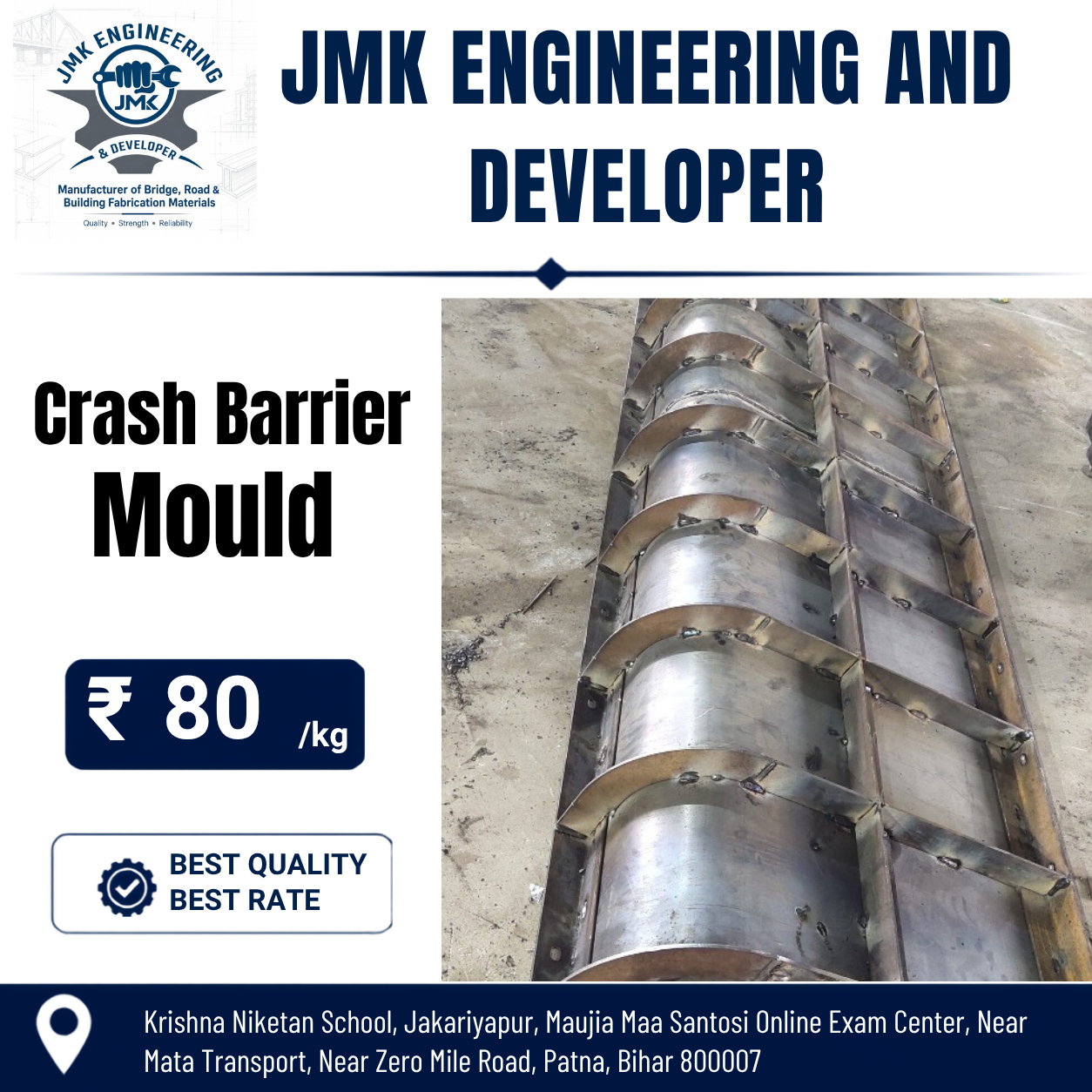

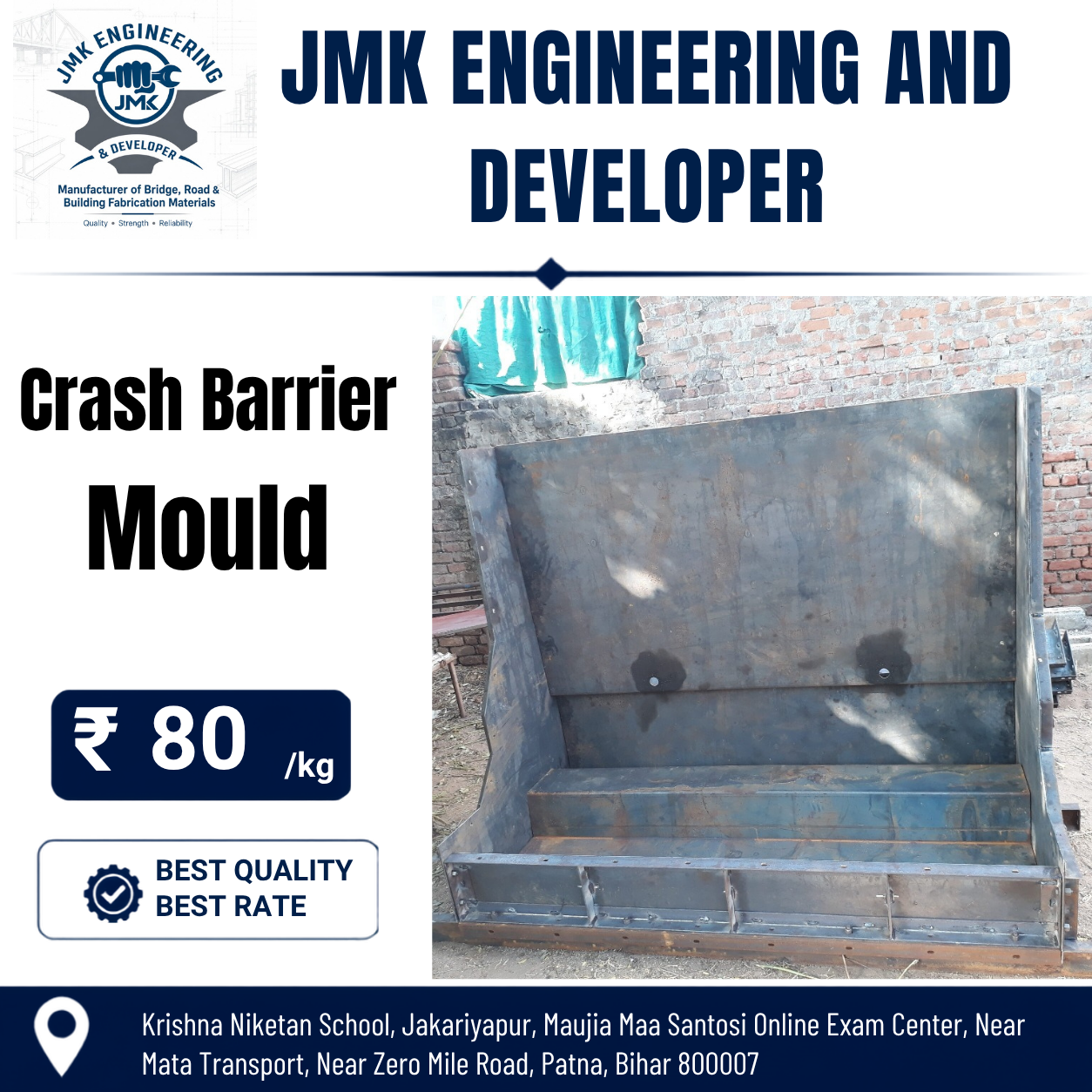

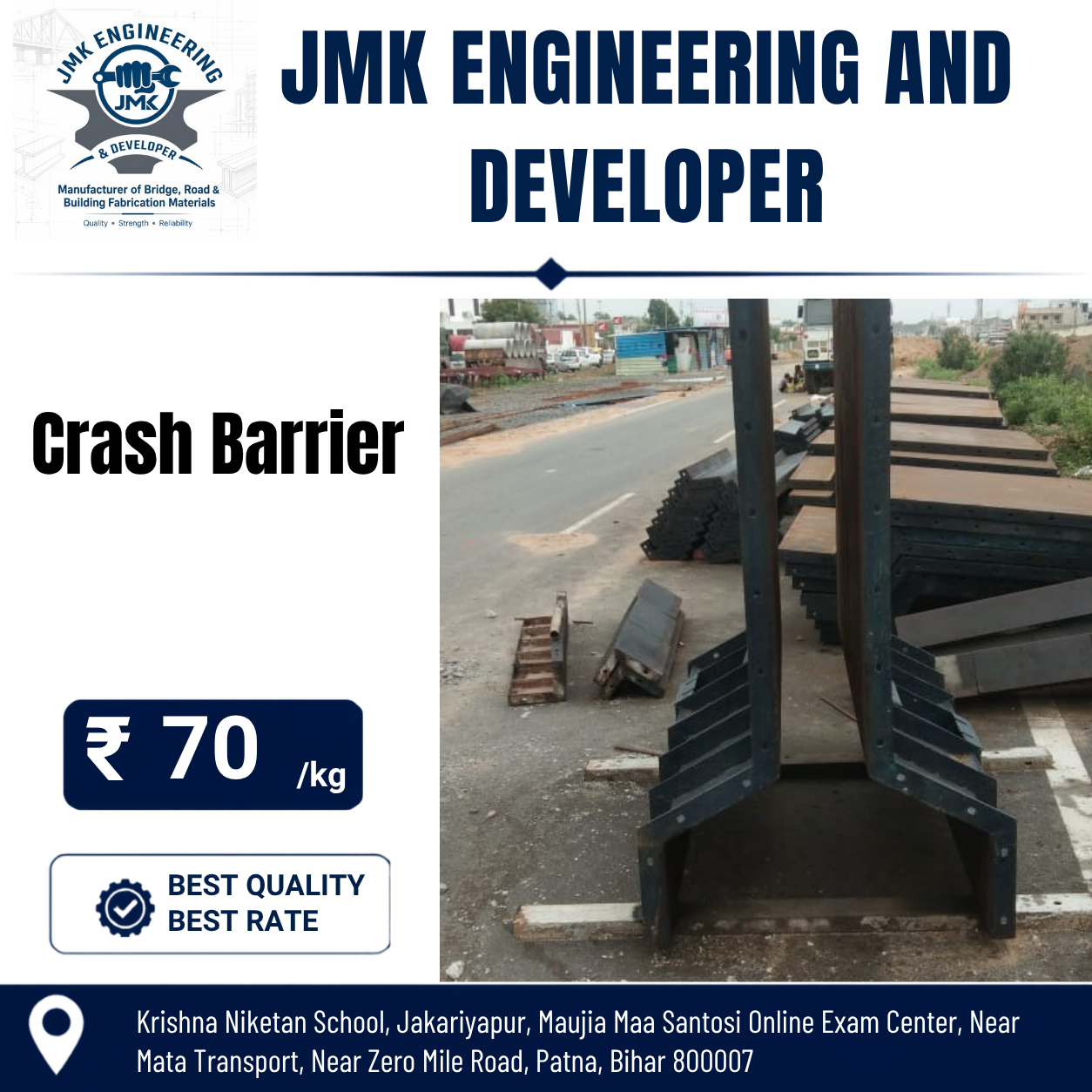

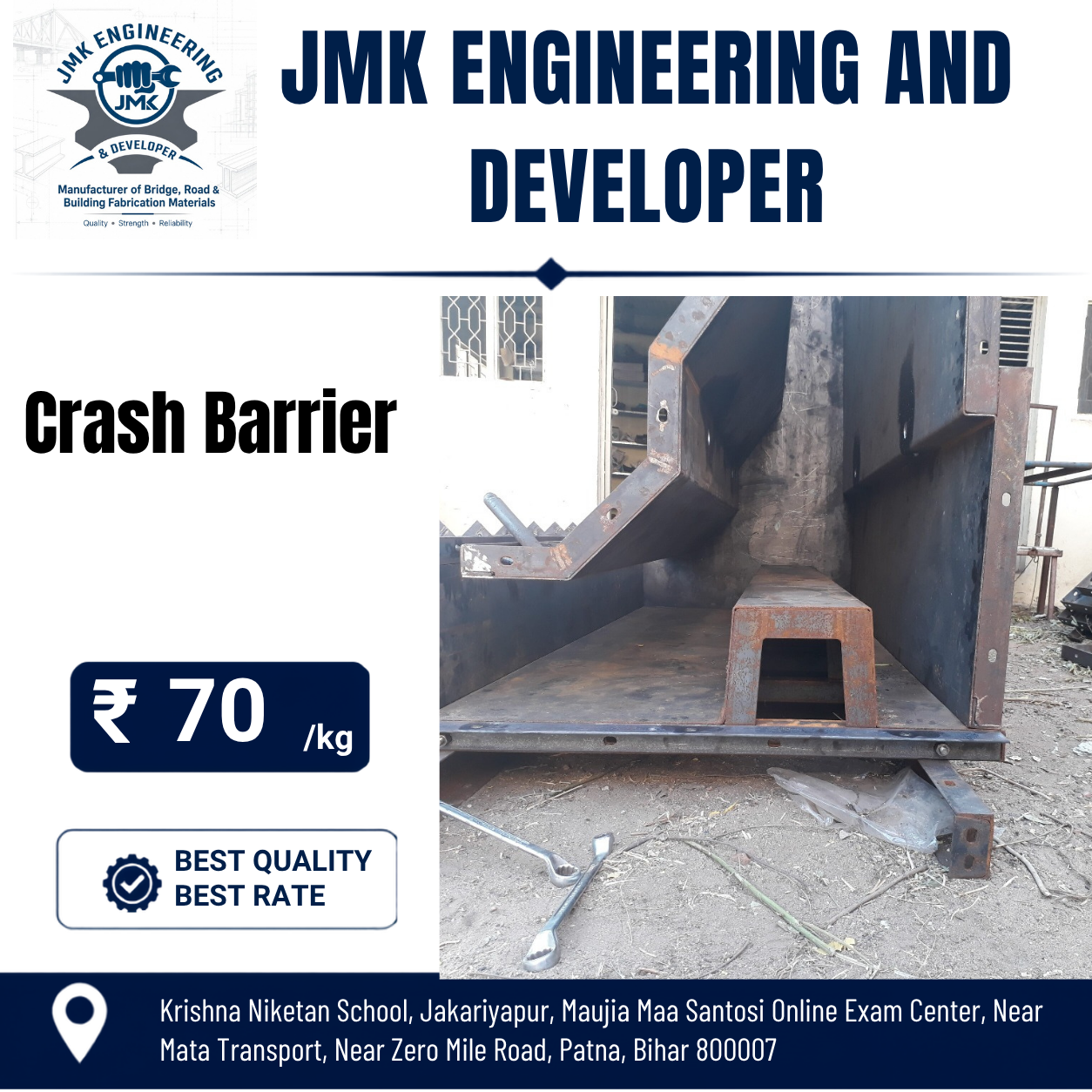

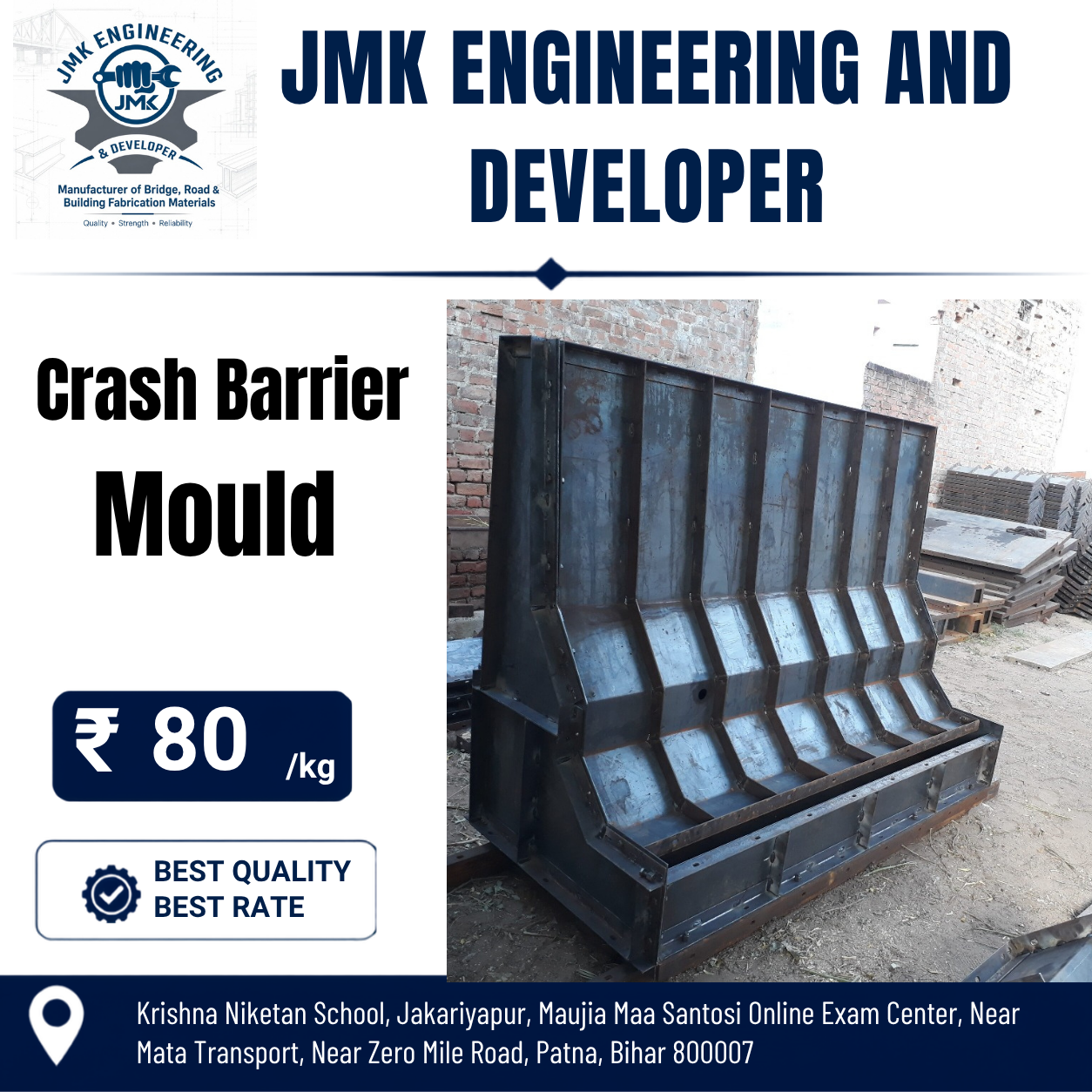

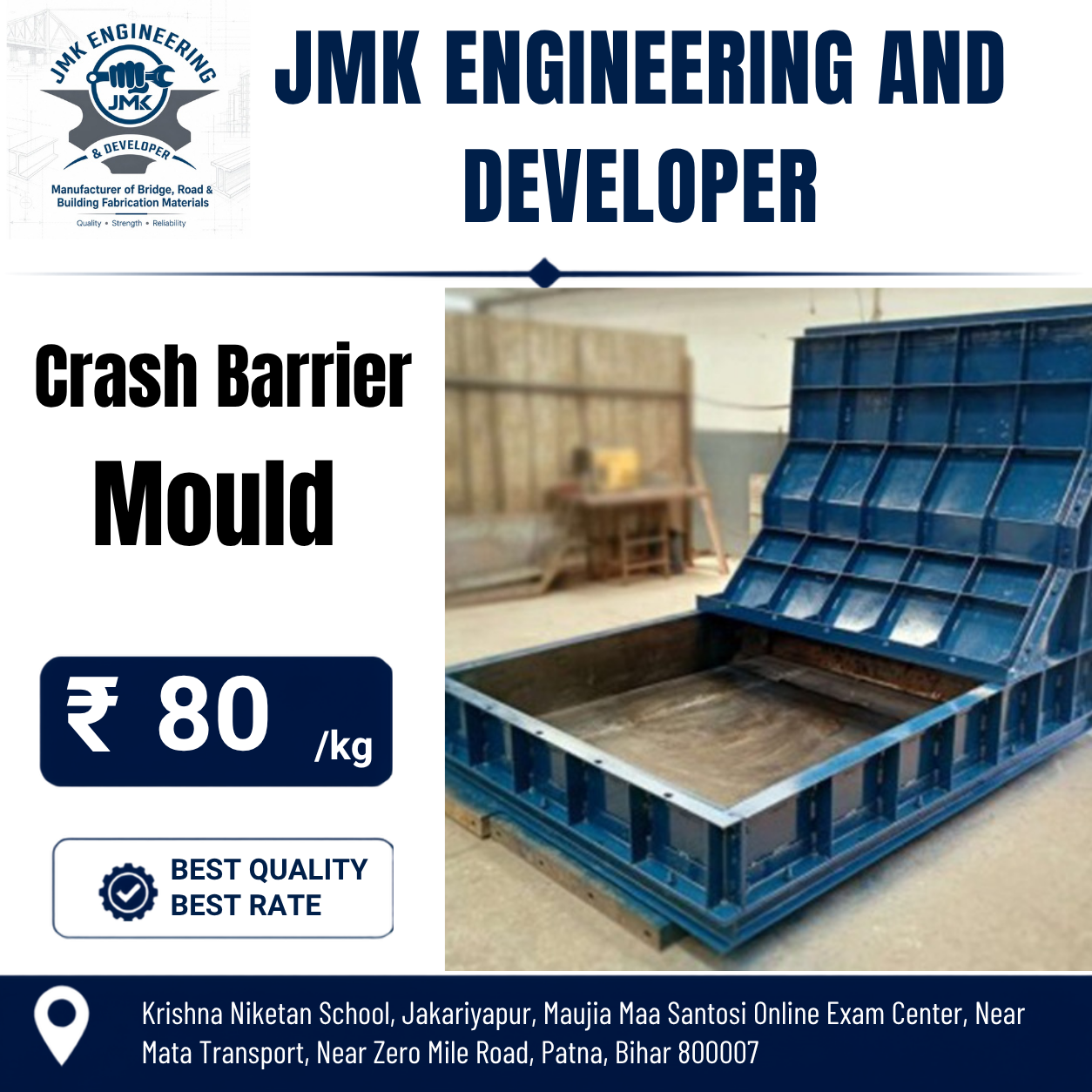

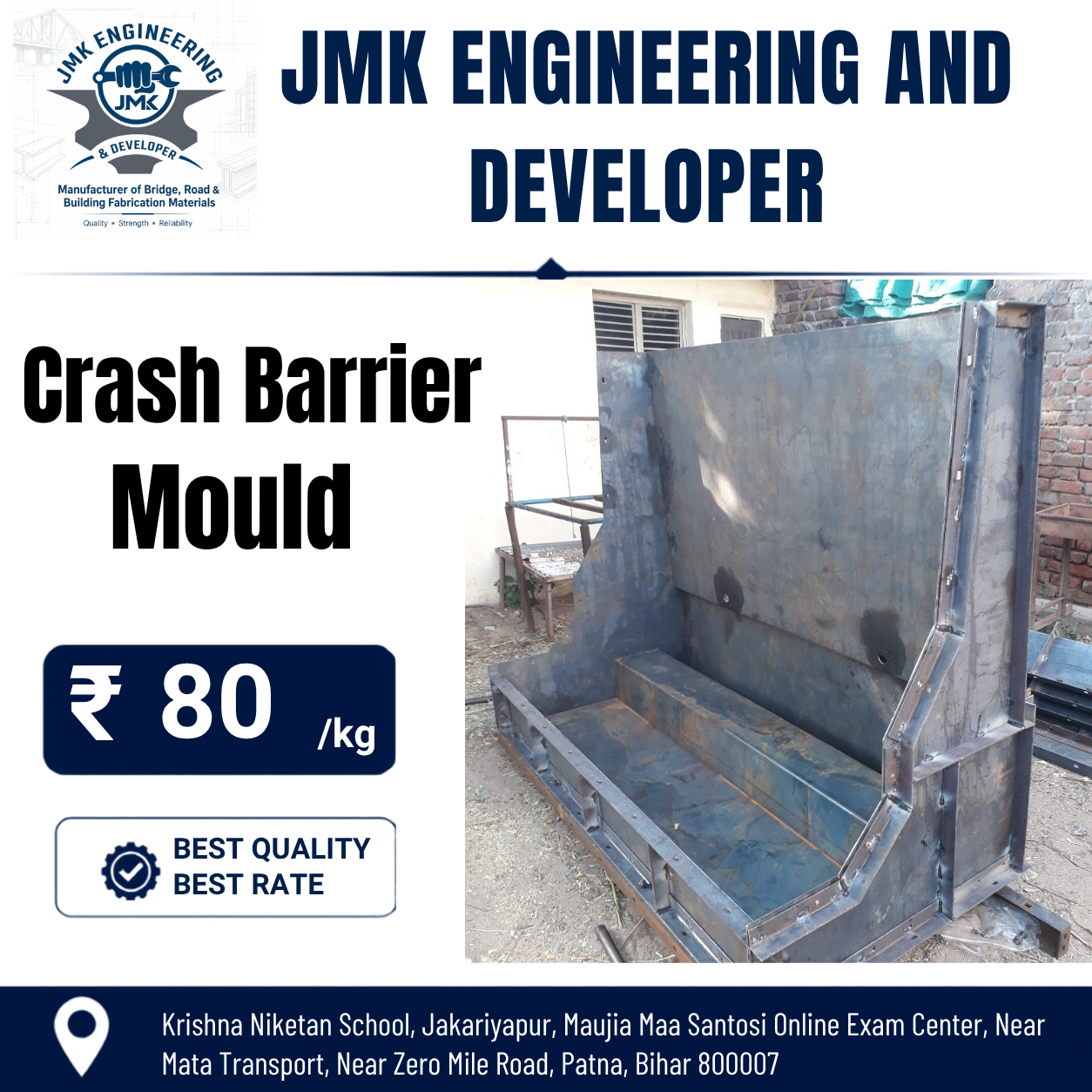

Heavy Bridge Crash Barrier Steel Mould (3m Length)
Get Flat 10% OFF on this product when requesting your formal BOQ quote today. (Use Code: JMKNAVRATRI10)
JMK Engineering & Developers manufactures precision-engineered steel Crash Barrier Moulds designed for in-situ casting of high-containment reinforced concrete crash barriers (parapets) along bridges, flyovers, and expressways. Fabricated with 4mm to 6mm thick IS 2062 skin plates stiffened by heavy vertical and horizontal channel soldiers. Available in 3-meter modular lengths with quick-lock turnbuckles and tie rod brackets, ensuring laser-straight alignment, smooth concrete surface finish, and over 100 repetition cycles.
Verified Technical Specifications
| Material Standard | Gauge / Thickness | Design Load Capacity | Standard Dimensions |
|---|---|---|---|
| IS 2062 Grade E250 Mild Steel | 2.0mm - 4.0mm | 20.0 Tonnes (Proof Loaded) | Length: 3000 mm (3.0m) |
| Modular Length | 3000 mm (3.0 Meter) per segment |
| MoRTH Height Profile | 850 mm / 1000 mm / 1100 mm |
| Skin Plate Thickness | 4.0 mm / 5.0 mm / 6.0 mm IS 2062 Plate |
| Stiffeners | ISMC 75 Channel & 50x50x6 Angle Ribs |
| Locking System | Turnbuckle Jack Brackets & Heavy Tie Rod Sleeves |
| Repetition Life | 100+ Pouring Cycles |
| Manufacturer | JMK Engineering & Developers, Patna Works |
Turnkey Project Uses (Civil Engineering Context)
Designed for heavy monolithic pours, floor 4+ slab staging, retaining walls, and high-pressure culvert formwork with zero plate deflection.
Tested for extreme dynamic load distribution across elevated metro rail corridors, flyovers, and expressway segment assemblies.
Multi-Tenant Stock & Logistics Hubs
| Regional Logistics Node | Allocated Buffer | Dispatch Status | Site Lead Time (ETA) |
|---|---|---|---|
Delhi NCR Logistics Depot IMT Manesar / Dwarka Expressway Corridor | 5.2 Tons | In Stock | 2 Days Delivery |
Patna HQ Central Works Didarganj Industrial Zone, Patna | 12.8 Tons | Direct Works Buffer | Immediate Dispatch (0 Days) |
Kolkata Eastern Depot Dankuni Multi-Modal Terminal | 7.0 Tons | In Stock | 4 Days Delivery |
Mumbai Western Hub MIDC Taloja / JNPT Expressway Node | 6.4 Tons | In Stock | 3 Days Delivery |
